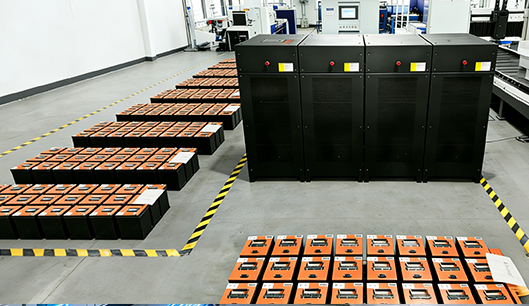

Hunan In-Core Battery Testing Facility
Regenerative Battery Test System
BTR-B10-150K

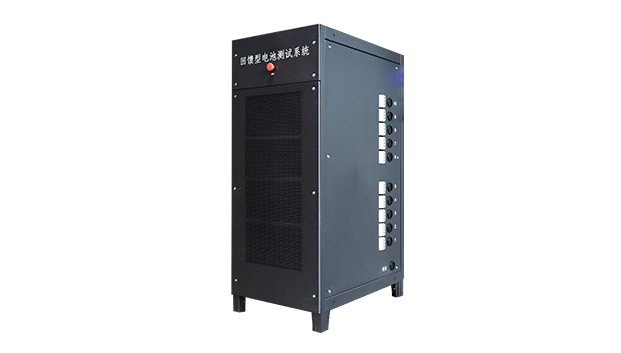

The Regenerative Battery Test System BTR-B10-150K is a professional device specifically designed for battery pack aging tests. It features 10 test channels and supports step simulation testing, battery capacity testing, dynamic/static SOC testing, charge/discharge characteristic testing, and more.
Product Features
Efficient & StablePeak energy feedback efficiency: 94%
DSP + CPLD high-efficiency and stable control algorithm
01
Secure & ReliableEquipped with multiple levels of hardware and software protection
High-frequency isolation between the battery and the grid improves system anti-interference capability
02
Flexible Configuration1–10 test channels, configurable on demand for maximum flexibility
Modular design of the main power section enables easy installation and high maintainability
03
Intelligent & User-FriendlyFast dynamic response: power response time < 10ms
Supports constant power, constant current and constant voltage control
04
Product Specifications
BTR-B10-150K
Basic Parameters
AC Parameters
Battery Parameters
Host Computer Parameters
Basic Parameters
| Project | Parameter Specifications | |
|---|---|---|
| Basic Parameters | Model | BTR-B10-150K |
| Number of Channels | 1-10CH Configurable on Demand | |
| Peak Conversion Efficiency | 94%max | |
| Dimensions (W × H × D) | 600×1500×900 mm | |
| System Weight |
＜165kg（Without the main power module） |
|
| Noise Level | ＜65dB | |
| Protection Rating | IP20 | |
| Allowable Ambient Temperature | -40~75℃，Output Power Derating Above 50°C | |
| Cooling Method | Air cooling | |
| Communication Interface | RS485、CAN、TCP | |
| Channel Features | Independent single-point channels, grid-tied operation |
AC Parameters
| Project | Parameter Specifications | |
|---|---|---|
| AC Parameters | Rated AC Power | 150kVA |
| Wiring Mode | Three-phase three-wire | |
| Maximum AC Power | 150kVA | |
| Permissible Grid Voltage | 380/400Vac ±20% | |
| Permissible Grid Frequency | 50/60Hz ±5% | |
| Total Harmonic Distortion of Current | ＜5% | |
| Power Factor | ≥99% |
Battery Parameters
| Project | Parameter Specifications | |
|---|---|---|
| Battery Parameters | Charge & Discharge Voltage Range | 20~300Vdc |
| Charge & Discharge Current Range | 0-120A | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±2% | |
| Current Response Time | ＜10ms （10%~90% F.S） | |
| Current Switching Time | ＜100ms （﹣90%~90% F.S） |
Host Computer Parameters
| Project | Parameter Specifications | |
|---|---|---|
| Host Computer Parameters | Supported Battery Types | Lead-acid 、Lithium battery |
| Charge & Discharge Modes | Constant voltage (CV)、Constant current (CC)、Constant power (CP) | |
| Data Display | Voltage, current, power, capacity, etc. | |
| Voltage & Current Parameter Setting | 100mV 100mA | |
| Data Export Format | EXCEL |
